Zirconium Toughened Alumina

ZTA - Aluminum Zirconium

Zirconia toughened alumina is a composite of alumina and zirconia which leads to an increase in strength and fracture toughness as compared to other aluminas. This high performance ceramic is ideal for industrial components for wear applications where toughness is critical.

High Strength & Toughness

Significantly enhanced fracture toughness compared to pure alumina.

Excellent Wear Resistance

Ideal for applications requiring high abrasion resistance.

Thermal Stability

Withstands high temperatures while maintaining mechanical properties.

Corrosion Resistance

Performs well in aggressive chemical environments.

Low Friction

Reduces material wear and energy loss in dynamic applications.

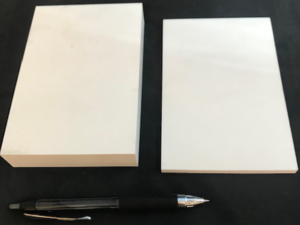

ZTA Wear Tiles - Calix Ceramics
Zirconia Toughened Alumina (ZTA) Wear Tiles

Zirconia Toughened Alumina Benefits

  • Extended Service Life: Reduced material degradation leads to longer operational lifespan.
  • Improved Reliability: Higher fracture toughness minimizes catastrophic failure risks.
  • Lightweight Alternative: Offers strength comparable to metals without the weight penalty.
  • Cost-Effective: Lower maintenance and replacement costs due to superior wear performance.
  • Customizable: Properties can be fine-tuned by adjusting zirconia content.

Zirconia Toughened Alumina Ceramic Properties

All properties are at room temperature (20°C) unless otherwise stated.

Physical Property Units Typical Value
Density g/cc 4.17
Grain Size μm 6
Hardness (Vickers) GPa 14.5
Fracture Toughness MPam^1/2 6
Flexural Strength MPa 586
Tensile Strength MPa 344
Compressive Strength MPa 2758
Elastic Modulus GPa 338
Poisson's Ratio - 0.23
Coefficient of Thermal Expansion 1 x 10-6 in/in °C 6.0
Volume Resistivity Ω-cm 10^14

Zirconia Toughened Alumina Frequently Asked Questions

 ZTA is a composite ceramic material made by adding zirconia particles to an alumina matrix, resulting in significantly improved mechanical properties.

 ZTA exhibits much higher fracture toughness and strength than pure alumina, making it better suited for high-stress or impact-prone applications.

 Medical, aerospace, industrial, and defense sectors commonly use ZTA due to its combination of toughness, corrosion resistance, and wear resistance.

 Yes, manufacturers can adjust the zirconia content or grain size to optimize the material for different strength, toughness, or thermal resistance needs.

 Yes, ZTA maintains excellent mechanical stability at elevated temperatures, although performance depends on the exact formulation.
